10 Sept 2026

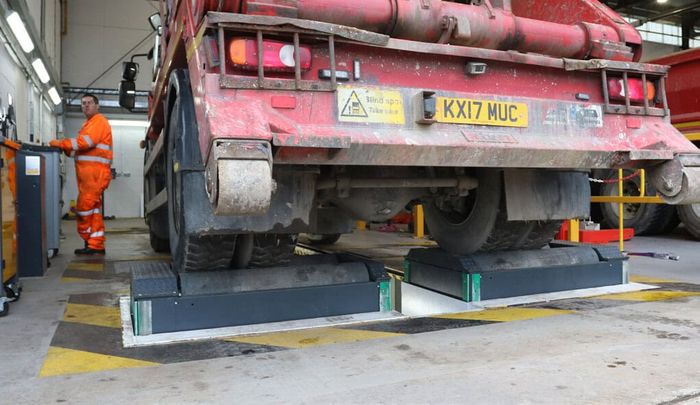

LoadSim (LiftBed) Brake Tester: Vamag RBT/MSC
)
DVSA now expects a laden roller brake test for annual testing and regular safety inspections. Getting a vehicle to 65% of its design axle weight usually means ballast, a forklift and lost time. The Vamag RBT/MSC does it hydraulically.
Each axle is raised in under 20 seconds and lowered in under 15, so a laden test on a tri-axle vehicle adds roughly 105 seconds compared with loading it up. Enter the DTP number and the software calculates the 65% design axle weight for you, telling the operator when it has been reached.
- Through our strong working relationship with DVSA, we were the first to gain DVSA Approval
- Compliance to the 2022 DVSA Guidelines
- 8 hydraulic cylinders (4 per side) for an even, vertical lift with no damage to the vehicle
- 15kW Soft Start Motors reduce strain on the gearbox
- Electromagnetic brake motors reducing risk to spark
- 8 dynamic load cells
- Bi-directional rollers with 4x4 contra rotation as standard
- Tablet controlled for one-person testing, with manual or PC operation of the lift
- Audible alarm on the lifting device
- 5-year gearbox and motor warranty
Brought to the UK through the Everquip and Vamag partnership, now working in more than 70 countries.
